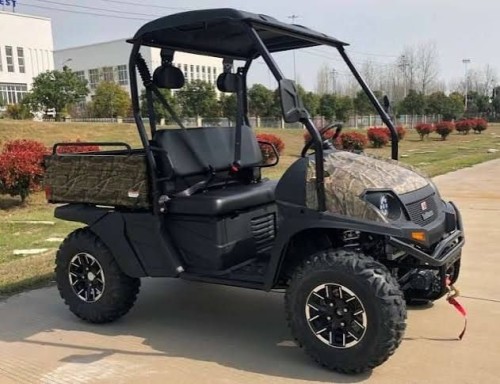

Trailmaster Taurus 450U EFI 4X4 UTV, 4-Stroke, Single Cylinder, Water Cooled, Electric Start

Trailmaster Taurus 450U EFI 4X4 UTV, 4-Stroke, Single Cylinder, Water Cooled, Electric Start

Inquire Now

Description:

FEATURES:

4X4 with lock in differential
EFI
Water cooled high performance 391cc engine with internal reverse set up
Equipped with large heavy duty steel color dump bed
Equipped with H/L gear, can climb up to 30 degree slopes with ease.
Four-wheel independent suspension for much better driving experience
Heavy duty frame, net weight 1098 lbs, max load 1000 lbs
Equipped with 3000lbs-winch
Digital dashboard
LED Hi/Lo head lights
Rear view side mirrors
Sporting steering wheel
Turn signals
Retractable safety seatbelt
Big aggressive off road tires: F / R: 25 x 8-12 / 25 x 10-12
Polished aluminum wheels
Hard top
Steel front bumper
Cup holder
12-V outlet
Adjustable heavy duty front and rear shock absorber
Rack and pinion steering wheel
Front and rear hydraulic disc brake
Large gas tank
Horn

ENGINE INFORMATION:

EPA Certificated
Engine Type: 4-stroke, single cylinder, water cooled
Displacement: 390.8cc
Compression Ratio: 10:1
Max HP: 26HP
Bore & Stroke: 82X74 mm
Max Torque and Crankshaft Speed: 30/5000 N.m/(RPM)
Nominal Power and Crankshaft Speed: 17/6500 kw/(RPM)
Max Torque and Crankshaft Speed: 19/6500-7000 kw/(RPM)
Max Speed: 43.2mph
Climbing Ability: 30 degrees
Ignition Mode: Electric Control Unit
Fuel System: Electronic Fuel Injection (EFI)
Starting System: Electric
Battery: 12V 30Amp
Engine Oil: SAE 15W/40

GENERAL INFORMATION:

Transmission: Automatic, L-H-N-R-P, 4X4
Drive Train: On demand 2WD/4WD; Locking differential;
Suspension, F / R: Front MacPherson, Rear Dual A-ARM
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 25 x 8-12 / 25 x 10-12
Fuel Tank Capacity: 4.8 gallons
Wheels: Aluminum
Weight, G.W. / N.W.: 1298 lbs/ 1078 lbs
Max Load: 1000 lbs
Dump Bed Capacity: 550 lbs
Towing Capacity: 1000 lbs

DIMENSION INFORMATION:

Wheelbase: 72”
OA L x W x H: 105”x 58”x 76”
Seat height: 34”
Min Ground Clearance: 10.2”
Dump Bed Size: 36.6” x 50” x 11.8”, dumping 35 degree
Crate dimension: 89” x 52” x 50”
